| Dura-Clad: Cladding Sheets: |
| |
Dura-Clad® panel is made from Aluminium Alloy AA3003 H24 temper, which is widely used, in marine and industrial applications. Its is superior in flatness and non-combustible DIN Standard.
Dura-Clad® is manufactured from state of art coil-coating system using PVF2/PVDF (Kynar 500/ Hylar 5000 resin) paint. It comes in 2 coats for solid colour or 3 coats for metallic finish. Dura-Clad® is highly consistent in colour stability , gloss retention, resistance to UV-A, UV-B & UV-C radiation and remains very beautiful for a very long time.
|
 |
| |
| Material Specifications: |
| |
| Thickness(mm) |
1.850 |
2.050 |
2.350 |
2.550 |
| Panel Weight (kg/m²) |
5.014 |
5.555 |
6.368 |
6.911 |
| Aluminium Alloy |
Type BS 3103 H24 |
| Mechanical Properties |
Tensile Strength 140-180 N/mm² |
| Finish |
Kynar 500/Hylar 5000 PVDF Coating on front side. Top surface to be protected by Polythene sheets. |
| Sheets Size |
Width : 1220mm
Length : Upon Request (Customized Request ) |
| Colour |
RAL references or made to request |
|
| |
| The compositions of Dura-Clad® panels are as below : |
| |
| Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Ti |
Others |
Al |
| 0.50 |
0.70 |
0.10 |
0.90-1.50 |
0.30 |
0.20 |
0.10 |
0.15 |
Remainder |
|
| |
| ................................................................................................................................................................................................... |
| |
| Standards For Fire Requirement |
| |
Dura-Clad® with PVF2/PVDF Fluorocarbon coatings have been tested and
approved by SIRIM for :-
|
| |
| |
Certification No |

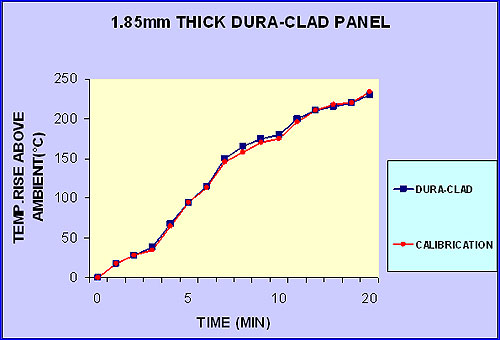

| BS476 Part 6 : Fire Propagation for Products |
2001FE0006 |
| BS476 Part 7 : Surface Spread of Flame Test for Materials |
2001FE0001 |
|
| |
Dura-Clad® Panels COMPLY with the Fire Requirements for Materials specified
Under the Malaysia Uniform Building By-Laws (UBBL) 1984.
* Index I indicates fire propagation index is 0.8
* Class One indicates surface of surface spread of Flame.
|
| |
 |
| |
| ................................................................................................................................................................................................... |
| |
| Coil Coating Process |
| |
Coating on a high speed technologically advanced paint-line. Surface pre-treatment by
Chromating, cover layers, primer and stoving of paint at temperatures between 249°C to
254°C. Wet film thickness 59-67 microns ensures excellent durability and excellent
Surface finishes for exterior applications.
|
| |
| Paint Coating Specifications |
| |
| Coating Thickness |
20 / 5 ( 2 coats Top Surface ) |
| Impact Resistance |
> 120 in lb |
| T-bent |
ASTMD4145 - 1T |
| Salt Spray |
ECCA-T8 - 500 hours |
Corrosion, blisters and loss of adhesion less than 3.00mm from the scribe |
| Flexibility |
ECCA-T6 > 6.00mm |
| Solvent Rub Test |
Pass 100 double rubs with MEK |
| Pencil hardness |
ECCA-T4 F-2H |
| QUV-B Exposure |
ECCA-T10 - 2000 hours |
Loss of gloss < 10% |
| ASTMD 2244 |
Average colour change not more than 2 CIELab units |
| ECCA-T14 / ASTMD 4214 |
Chalking not in excess of numerical 7 |
| Non-Combustibility |
DIN 4102 - A2 |
| Waste Cases |
DIN 4102 Part 1 - safe |
|
| |
| ................................................................................................................................................................................................... |
| |
| PAINT FORMULATED FROM KYNAR 500 / HYLAR 5000 PVDF |
| |
Formulated to contain minimum amount of 70% Polyvinylidene Fluoride polymer which leads to excellent product performance for external application via high speed paint line for colour consistency of Pre-painted coils. Resin system – Fluorocarbon / acrylin Solvent system – Ester / Ketones. |
| |
Applications:-
- External Façade Claddings for New Building & Refurbishments
- Covered Walkways, Canopies, Shelters, Gutters
- Flashings, Column Cover
- Sun Shades
- Ceilings Square Tiles, Ineternal Panels
- High Quality Roofing Systems
- Signages, Sign Boards, Road Sign, Bill Boards etc. |
 |
| |
|
| |
| |
